Focus Triple
aaline’s FOCUS Series is designed for precision lighting, carved out of a single block of hardwood. Each fixture is enhanced with aaline’s proprietary anti-glare carved visors (UGR <16) and 90+ CRI LED chips, available in various editions to suit the look of any space.
[divider]
SERIES: Linear Embedded
MODEL: Focus
EDITION: Triple
LUMEN OUTPUT:
LO
4': 1800 lm | 13.1 W | 135 lm/W
6': 2700 lm | 19.6 W | 135 lm/W
ST
4': 2700 lm | 19.7 W | 135 lm/W
6': 4050 lm | 29.4 W | 135 lm/W
HI
4': 3600 lm | 26.2 W | 135 lm/W
6': 5400 lm | 39.3 W | 135 lm/W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: 0-10V, TRIAC/ELV, DALI
[divider]
NEED SOMETHING CURATED?
Check out our designer product for streamlined, ready-to-order options: Focus Single Standard
aaline’s FOCUS Series is designed for precision lighting, carved out of a single block of hardwood. Each fixture is enhanced with aaline’s proprietary anti-glare carved visors (UGR <16) and 90+ CRI LED chips, available in various editions to suit the look of any space.
[divider]
SERIES: Linear Embedded
MODEL: Focus
EDITION: Triple
LUMEN OUTPUT:
LO
4': 1800 lm | 13.1 W | 135 lm/W
6': 2700 lm | 19.6 W | 135 lm/W
ST
4': 2700 lm | 19.7 W | 135 lm/W
6': 4050 lm | 29.4 W | 135 lm/W
HI
4': 3600 lm | 26.2 W | 135 lm/W
6': 5400 lm | 39.3 W | 135 lm/W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: 0-10V, TRIAC/ELV, DALI
[divider]
NEED SOMETHING CURATED?
Check out our designer product for streamlined, ready-to-order options: Focus Single Standard
PRODUCT RESOURCES
TECHNICAL DOWNLOADS

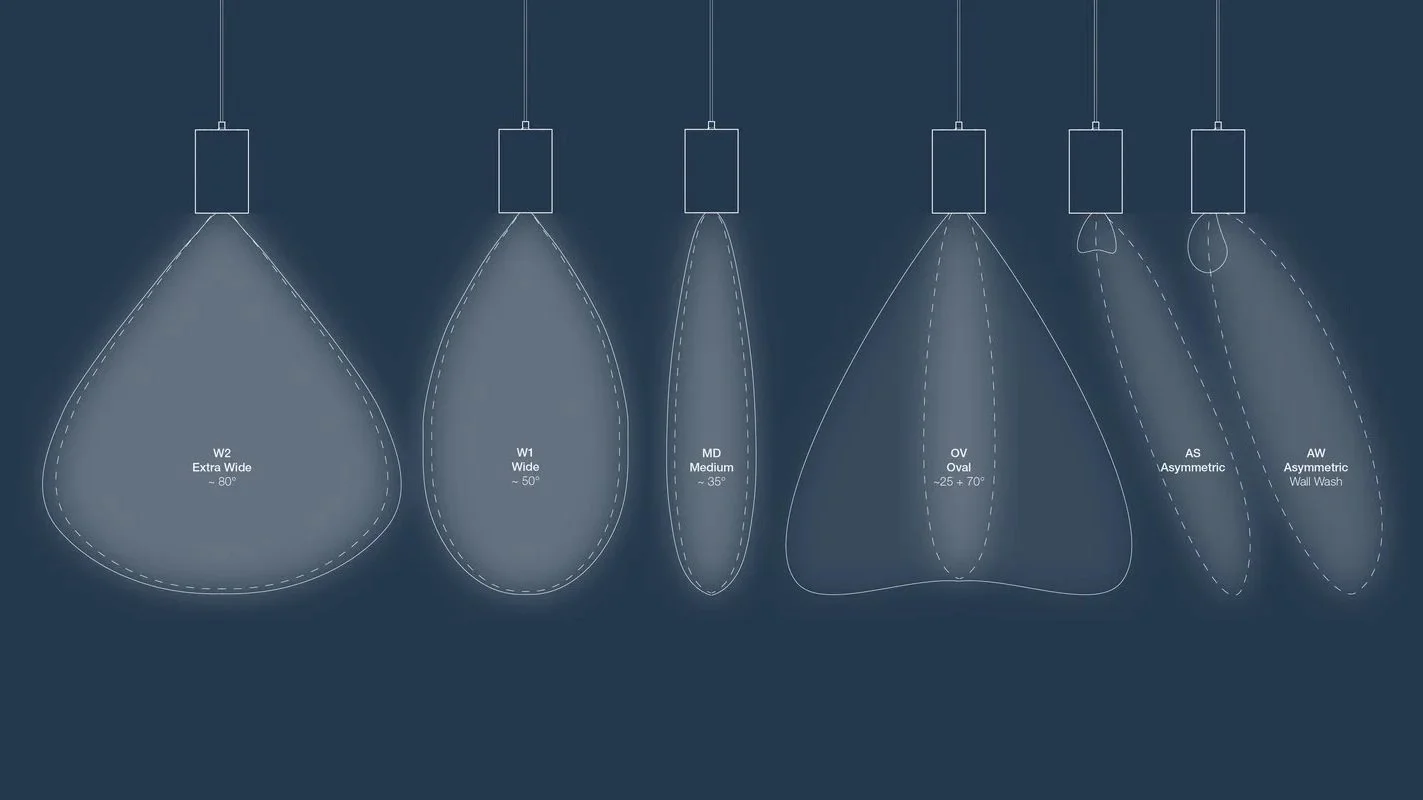

The Focus Series offers various optic selections for both direct and indirect light distribution including Oval, Medium, Wide, Extra Wide, Asymmetric, and Asymmetric Wall Wash for direct, and Lambertian, Batwing Wide, Batwing Extra Wide, and Asymmetric for indirect. The flexibility of specifying direct and indirect optics allows full control of the required light direction and performance in the space.
optics for any occasion

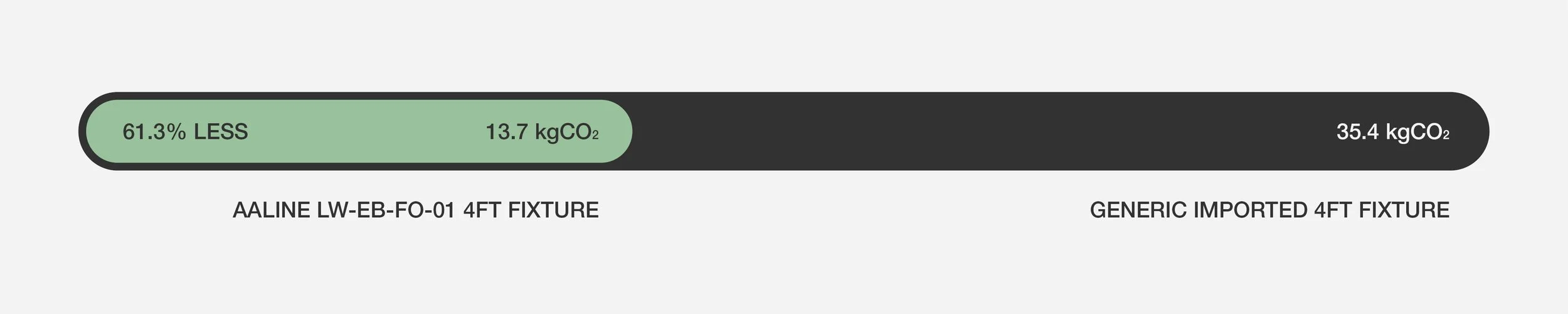

CARBON FOOTPRINT ESTIMATE
product configuratoR
FSC Certified Wood
As a North American manufacturer, we take pride in innovating with one of our country’s highly sought after natural resources. Relying on a local supply-chain contributes to our local economy and reduces our carbon footprint on transportation. Our wood is supplied and milled under 50 km from our factory.
100% natural acoustic felt
Available in 40 accent colours, the Cone Pendant can be mixed and matched to complement any space.
FENIX NTM
Crafted through multi-layer coating and the use of next-generation acrylic resins, they are hardened and fixed through an Electron Beam Curing process. With low light reflectivity, their surface is extremely opaque, soft touch, anti-fingerprint and easy to clean.
