Cylinder Cluster
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔

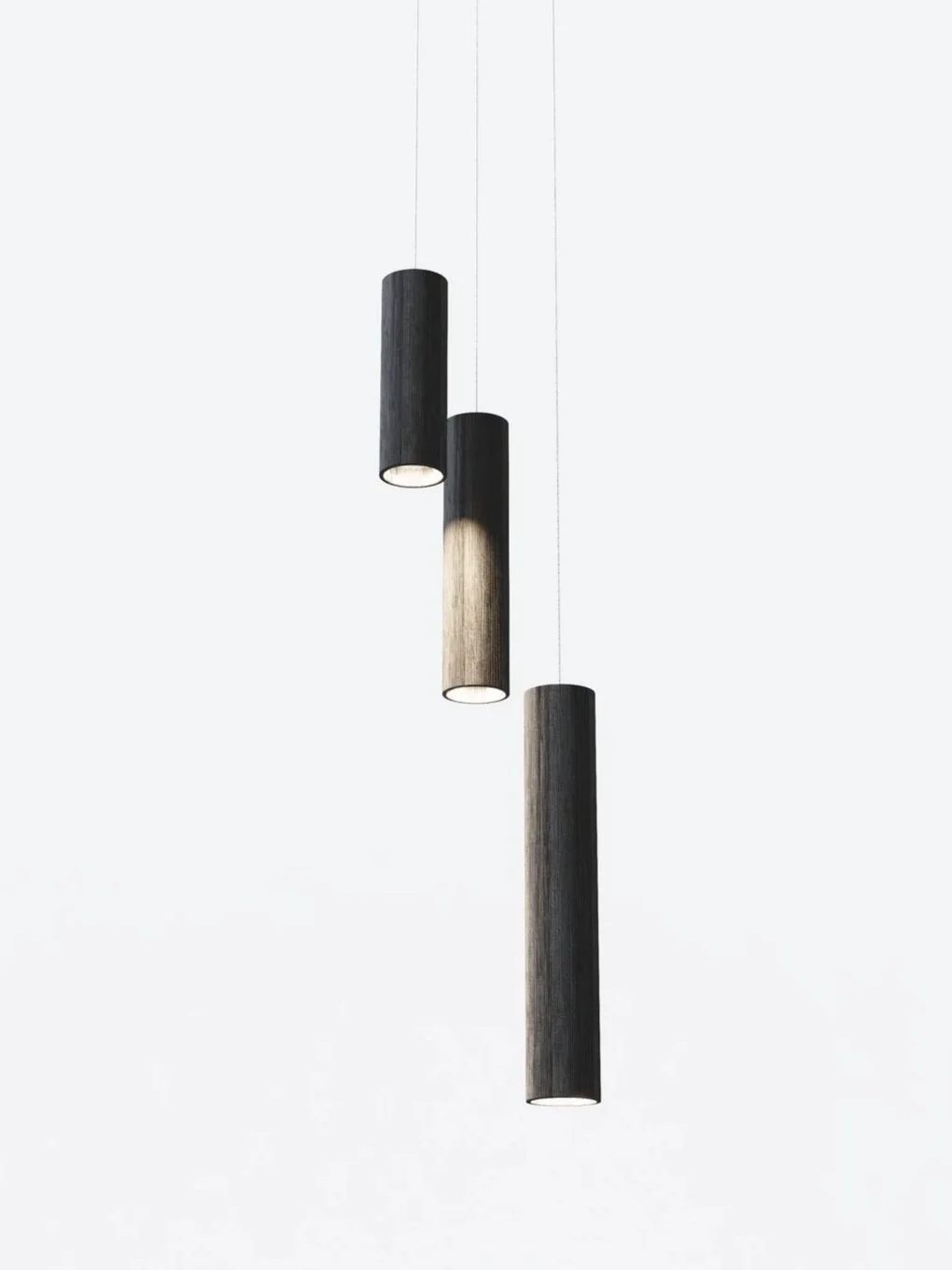

The Cylinder Cluster combines the Cylinder Pendant in various configurations to fill large interior environments. aaline’s new territory of working with aluminum produces components that are manufactured with precision and effortlessly accumulated into statement pieces.

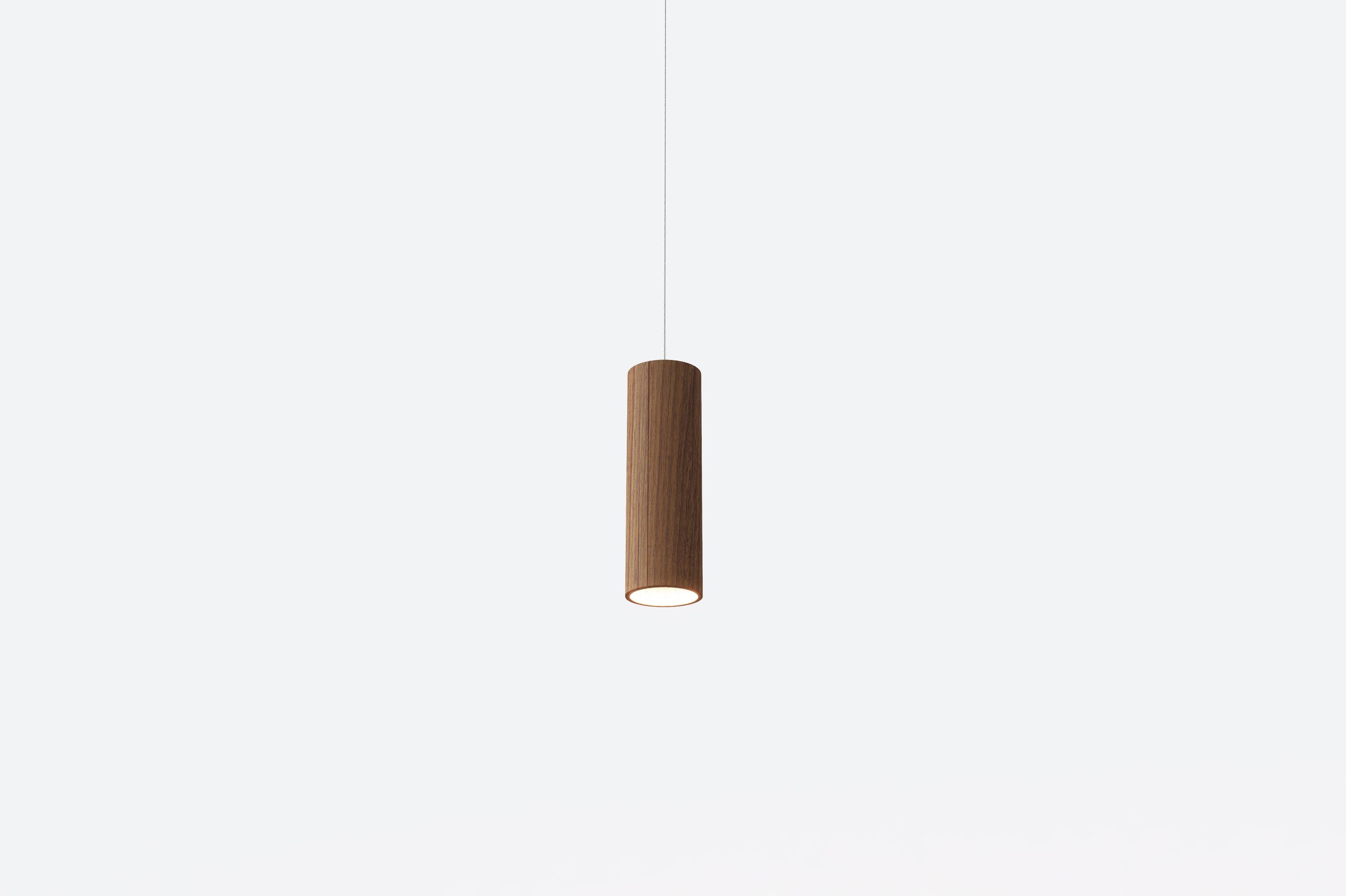

The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this cluster offers a simple solution for captivating fixtures in open spaces.
SERIES: CY
MODEL: CL
LUMEN OUTPUT + CONSUMPTION:
3000 lm, 25 W | 4800 lm, 40 W | 7200 lm, 55 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Cluster combines the Cylinder Pendant in various configurations to fill large interior environments. aaline’s new territory of working with aluminum produces components that are manufactured with precision and effortlessly accumulated into statement pieces.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this cluster offers a simple solution for captivating fixtures in open spaces.
SERIES: CY
MODEL: CL
LUMEN OUTPUT + CONSUMPTION:
3000 lm, 25 W | 4800 lm, 40 W | 7200 lm, 55 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Cluster combines the Cylinder Pendant in various configurations to fill large interior environments. aaline’s new territory of working with aluminum produces components that are manufactured with precision and effortlessly accumulated into statement pieces.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this cluster offers a simple solution for captivating fixtures in open spaces.
SERIES: CY
MODEL: CL
LUMEN OUTPUT + CONSUMPTION:
3000 lm, 25 W | 4800 lm, 40 W | 7200 lm, 55 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
-
SUSTAINABLE
Each piece is manufactured from local, recyclable aluminum with intentional suppliers and a robust system meant to last.
CUSTOMIZABLE
This product is intentionally designed to be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.SCALABLE
Envisioned by Fishtnk’s team, this product is adaptable by nature and can be featured in interior environments as a minimal, singular unit or in appropriate, large-scale formations to fill the space. -
DIAMETER PER PENDANT
2-3/8”ØPROGRAMMABLE DRIVER ➔
Remote
Powered Canopy
CONFIGURATION
01 | SML
02 | S3
03 | S2M2
04 | S6
05 | S2M2L2
06 | SMLSML
FIXTURE HEIGHT
For configurations 01, 02, 03, and 06, total height must be greater than 2’
For configuration 04, total height must be greater than 3’
For configuration 05, total height must be greater than 4’
POWER
3000 lm, 25W
4800 lm, 40W
7200 lm, 55W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%BEAM ANGLE
Super Spot | 15°
Spot | 18°
Medium | 24°
Wide | 36°
Extra Wide | 60°
CRI
80 [125 lm/W]
90 [108 lm/W]
Based on 80 CRI, 3000K. Actual output may vary +/- 5%
DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON EcoSystem
COLOUR TEMPERATURE ➔
2700K, 90+ CRI
3000K, 90+ CRI
3500K, 80 and 90+ CRI
4000K, 80 and 90+ CRI
Dim-To-Warm | 3000K - 1800K -
CANOPY COLOUR
Black
White
Custom
CABLE COLOUR
Clear Jacket with Silver CoreCABLE LENGTH
5' [Standard]
Custom
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
MOUNTING OPTIONS - POWERED CANOPY ➔
Junction Box Support -
-
MATERIALS + FINISHING
ALUMINUM BODY FINISH
ALUMINUM HEATSINK FINISH
