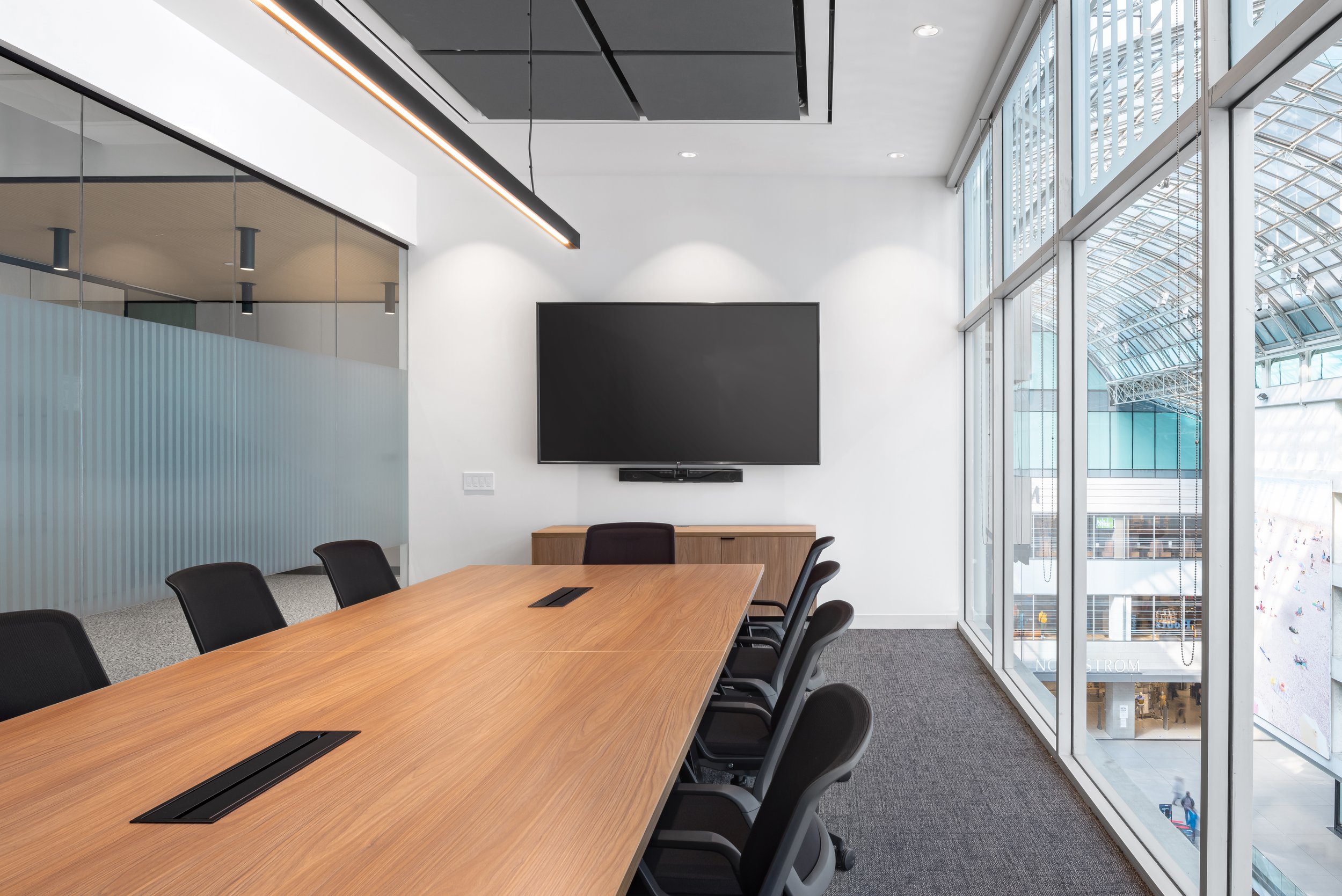

LW-EB-01 | Linear Embedded
aaline’s suspended linears are a staple in our product offering. Available with various mounting types, we providing suspending mounting options for all types of space requirements.
LW-EB-01 | Linear Embedded
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Series is the core and base of most high-performance systems aaline offers. The Chip-on Board LED modules are integrated with our robust aluminum heatsink for long life expectancy and performance up to 1400 lm/ft. To guarantee a perfect and consistent output by our system, all systems with LW-EB modules are powered by programmable lux/lumens drivers for the most accurate and efficient performance.
SERIES: LW-EB
MODELS: 02 | 03
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Anti-Glare is designed to provide a smooth and balanced light distribution for a focused output. They bring luminosity and an unassuming, tactile elegance to complement contemporary architecture and interiors. aaline’s proprietary ‘carved-visor’ system relies on the structural hardwood core to sculpt the anti-glare cells with zero plastic, achieving a UGR Rating <16, in line with WELL Building Standards.
SERIES: LW-EB
MODEL: 01
UPGRADE: AG
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Island Light is made for flexible and residential spaces. This fixture features our dual-celled anti-glare solution achieving a UGR<16, complying with WELL Building standards.
SERIES: LW-EB
MODEL: 01 | 02
UPGRADE: IS
LUMEN OUTPUT:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
DISCONTINUED
This is a legacy product. Please refer to Linear Continuous Acoustic as the newest model.
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Arc features our high-performance Linear Continuous engine framed by acoustic felt layers. This fixture’s gentle curve and linear light combine for a unique profile that creates an airy atmosphere in the ceiling above and frames the furniture below.
SERIES: LW-EB
MODEL: ARC
LUMEN OUTPUT:
LO: 650 lm/ft | 6.2 W/ft | 115.4 lm/W
ST: 1000 lm/ft | 9.5 W/ft | 110.2 lm/W
HI: 1514 lm/ft | 14.4 W/ft | 104.9 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 10 W/ft
OPTICS: Lambertian, Oval, Wide, Extra Wide, Asymmetric
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Conference Room Systems are a stream-lined toolkit for tuning the perfect meeting room. The CRS-LN is a modification of our AP-PA and LW-EB-LC, with careful design considerations to combine these products for a minimal look and seamless installation. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The LW-EB-CRS-LC system is made for long runs of uninterrupted illumination through modular design. This system of virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.
SERIES: CRS
MODEL: LN
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔

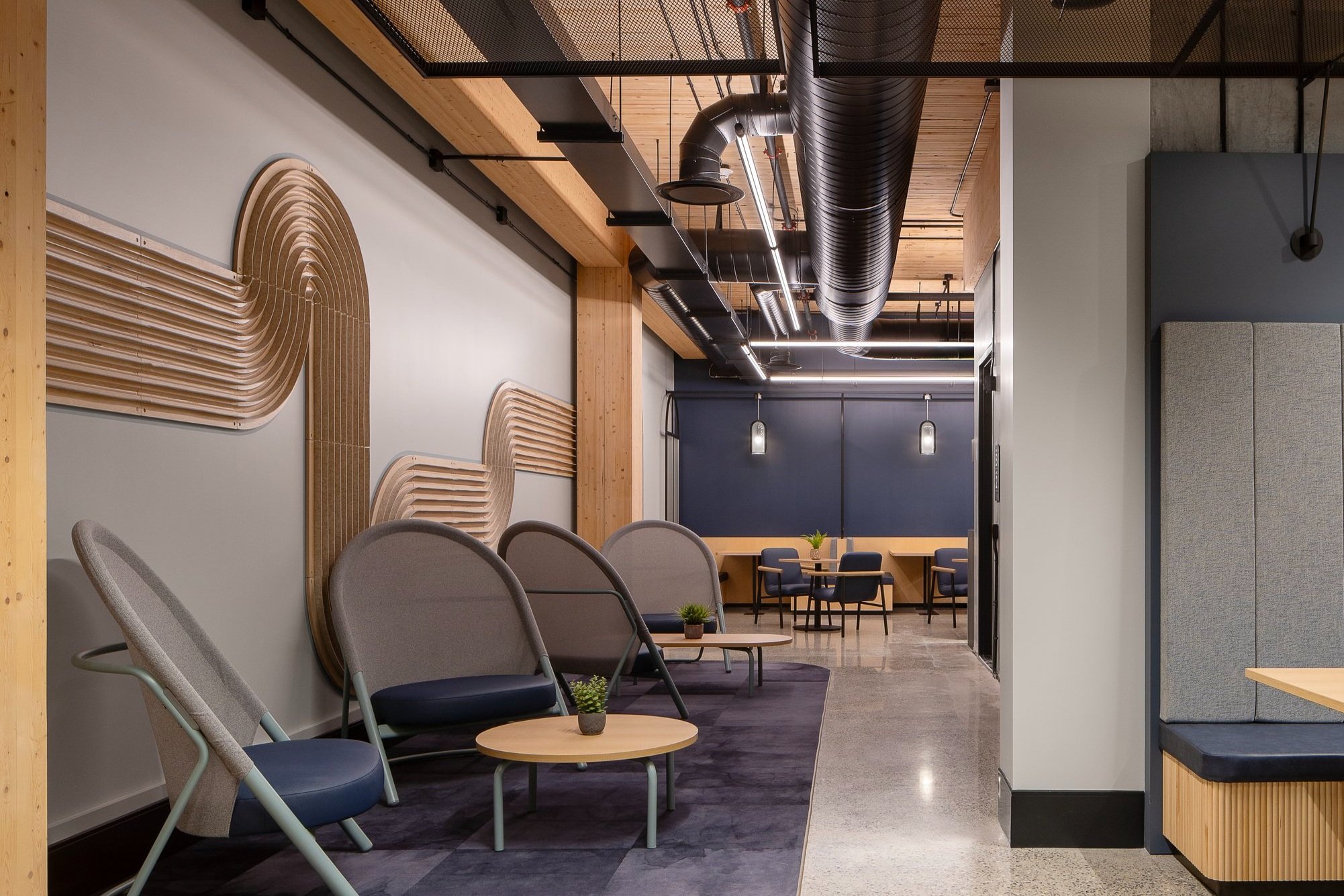

Consistent with the rest of the Echo Collection, this system is inspired by harmonic serialism and soft minimalism. The CRS Echo is designed to create a warm and welcoming auditory experience with control of specific acoustic and lighting parameters. Acoustic modules are made from selectively harvested Canadian Hardwood and 100% natural felt.
The CRS Echo is equipped with an integrated modification of aaline’s LW-EB, with a minimal profile and rounded edges. The LW-EB utilizes 90 CRI LED chips with a range of CCT available in 1 or 2 channel control.
SERIES: CRS
MODEL: EC
NRC RATING: Up to 1.0
LUMEN OUTPUT + CONSUMPTION:
900 lm/ft | 8.6 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
The CRS Flat redefines the aesthetic look of Conference Room Systems with its elegant profile. Its modular design offers virtually infinite length possibilities blending materiality, colours, and geometric elements.
The CRS-FL combines acoustic modules with aaline’s Linear Continuous (LW-EB-LC). Acoustic modules are upholstered with Maharam textiles or 100% natural acoustic felt and backed with sound-absorbent fibres to achieve impressive Noise Reduction Coefficient (NRC) ratings. Lighting fixtures are thoughtfully designed to be integrated into the system for seamless installation.
SERIES: CRS
MODEL: FL
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser
CONFIGURE YOUR CRS ➔
CRS BROCHURE ➔
REQUEST A QUOTE ➔
The CRS-AW combines acoustic modules with aaline’s LW-EB-LC model. Acoustic modules are backed with sound-absorbent fibre boards and 100% natural felt. The LW-EB-CRS-LC integrates into the acoustics with careful design considerations and power-over-cable suspension for a minimal, seamless installation. This lighting system is made for long runs of illumination through modular design. This virtually infinite coverage can be specified with standard or high-efficacy LED output in various colour temperatures including dynamic whites.
SERIES: CRS
MODEL: AW
NRC RATING: Up to 1.0
LUMEN OUTPUT:
650 lm/ft | 6.2 W/ft | 105 lm/W
1000 lm/ft | 9.5 W/ft | 105 lm/W
1514 lm/ft | 14.4 W/ft | 105 lm/W
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET film diffuser
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. aaline’s new territory of working with aluminum produces components that are manufactured with precision for a minimal fixture with endless potential.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: CY
MODEL: PN
EDITION: ST
LUMEN OUTPUT + CONSUMPTION:
Integrated
1200 lm, 9.9 W
Remote or Powered Canopy
700 lm, 5.4 W | 900 lm, 7.2 W | 1200 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. The compact pendant now features a wood housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: Cylinder
MODEL: Pendant
EDITION: Wood
LUMEN OUTPUT + CONSUMPTION:
Integrated
1200 lm, 9.9 W
Remote or Powered Canopy
700 lm, 5.4 W | 900 lm, 7.2 W | 1200 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. aaline’s new territory of working with aluminum produces components that are manufactured with precision for a minimal fixture with endless potential.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: CY
MODEL: PN
EDITION: HI
LUMEN OUTPUT + CONSUMPTION:
1250 lm, 10 W | 1875 lm, 15 W | 2500 lm, 20 W | 3600 lm, 28.8 W
Based on 80 CRI, 3000K. Actual output may vary ± 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Diffuse introduces an unanticipated moment for the unique diffusion of light through elegant materials. aaline’s new territory of working with aluminum produces components that are manufactured with precision for an unprecedented and captivating fixture.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different finishes and beam angle options, this product is easily customizable to fit required specifications.
SERIES: CY
MODEL: DF
LUMEN OUTPUT + CONSUMPTION:
Integrated
1100 lm, 9.9 W
Remote or Powered Canopy
640 lm, 5.4 W | 825 lm, 7.2 W | 1100 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Cluster combines the Cylinder Pendant in various configurations to fill large interior environments. aaline’s new territory of working with aluminum produces components that are manufactured with precision and effortlessly accumulated into statement pieces.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this cluster offers a simple solution for captivating fixtures in open spaces.
SERIES: CY
MODEL: CL
LUMEN OUTPUT + CONSUMPTION:
3000 lm, 25 W | 4800 lm, 40 W | 7200 lm, 55 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X2
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s X2 Round Edition is designed for contemporary, minimal living. Equipped with high-performance, low-consumption LED technology in a selection of warm white colour temperatures, this system brings a comforting natural aesthetic to any environment.
SERIES: LW-EB
MODEL: X2
UPGRADE: RD
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X3
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft per foot diameter
E.g. 650 lm x 4 ft diameter = 2600 lm fixture
E.g. 1400 lm x 4 ft diameter = 5600 lm fixture
Final output confirmed in shop drawings
Custom outputs available upon request
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X4
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft per foot diameter
E.g. 650 lm x 4 ft diameter = 2600 lm fixture
E.g. 1400 lm x 4 ft diameter = 5600 lm fixture
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
Polar Array, aaline’s elegant statement piece is designed with parametric attributes to allow a simple yet impressive mass-customizable system. Inspired by generative geometric algorithms, the Polar Array relies on key parameters provided by the architect/designer to arrive at a specific system with a unique appearance and exact specifications.
By selecting the number of desired stems [N], general radial coverage [D], spacing height between stems [H] and overall dimensions of stem lengths and fixture, you can fully customize the piece.
SERIES: LW-EB
MODEL: XPA
LUMEN OUTPUT + CONSUMPTION:
3024 lm | 28.8 W | 105 lm/W
6048 lm | 57.6 W | 105 lm/W
9072 lm | 86.4 W | 105 lm/W
Final output confirmed in shop drawings
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Plane is a hybrid between an acoustic baffle and light. Versatile by nature, the simple shape encourages the use of cluster-based compositions. Available in 4 sizes to dynamically fill overhead space with endless configurations. Plane is an opportunity to create a visually compelling acoustic space with sculptural properties and high-end finishes. Working with Maharam fabrics provides a luxurious textural element that brings an interesting visual dialogue to Plane while simultaneously enhancing the acoustic performance.
SERIES: LW-EB
MODEL: PL
LUMEN OUTPUT + CONSUMPTION:
Low | 201.6 lm/ft, 5.2 W/ft | 90+ CRI
Standard | 445 lm/ft, 7.3 W/ft | 80+ CRI
High | 624.4 lm/ft, 9.5 W/ft | 90+ CRI
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate diffuser
CONFIGURE YOUR FIXTURE➔
REQUEST A QUOTE ➔
aaline’s Plane is a hybrid between an acoustic baffle and light. Versatile by nature, the simple shape encourages the use of cluster-based compositions. Available in 4 sizes to dynamically fill overhead space with endless configurations. Plane Zigzag incorporates long runs of our Plane module set at certain degree angles. Baffles lined with Maharam fabrics provide a luxurious textural element that brings an interesting visual dialogue to any space.
SERIES: LW-EB
MODEL: PL
CONFIGURATION: ZZ
POWER:
Low | 201.6 lm/ft, 5.2 W/ft | 90+ CRI
Standard | 445 lm/ft, 7.3 W/ft | 80+ CRI
High | 624.4 lm/ft, 9.5 W/ft | 90+ CRI
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Star Pendant takes shape through repetition. Planar baffles encircle suspended lighting to achieve unique three-dimensional forms. This system unites engineered wood backed with 100% natural acoustic felt for curated colour combinations and playful material synergy.
SERIES: Star
MODEL: Pendant
EDITION: Acoustic Felt
LUMEN OUTPUT + CONSUMPTION:
28.8 W | Max 3022 lm
57.6 W | Max 6044 lm | Available for LN and RD profiles only
Custom lumen output available for Remote fixtures only
Source LED output before reductions
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔ [Coming Soon]
REQUEST A QUOTE ➔
aaline’s Star Pendant takes shape through repetition. Planar baffles encircle suspended lighting to achieve unique three-dimensional forms. This system unites engineered wood backed with 100% natural acoustic felt or a painted finish for curated colour combinations and playful material synergy.
SERIES: Star
MODEL: Pendant
EDITION: Painted
LUMEN OUTPUT + CONSUMPTION:
28.8 W | Max 3022 lm
57.6 W | Max 6044 lm | Available for LN and RD profiles only
Custom lumen output available for Remote fixtures only
Source LED output before reductions
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔

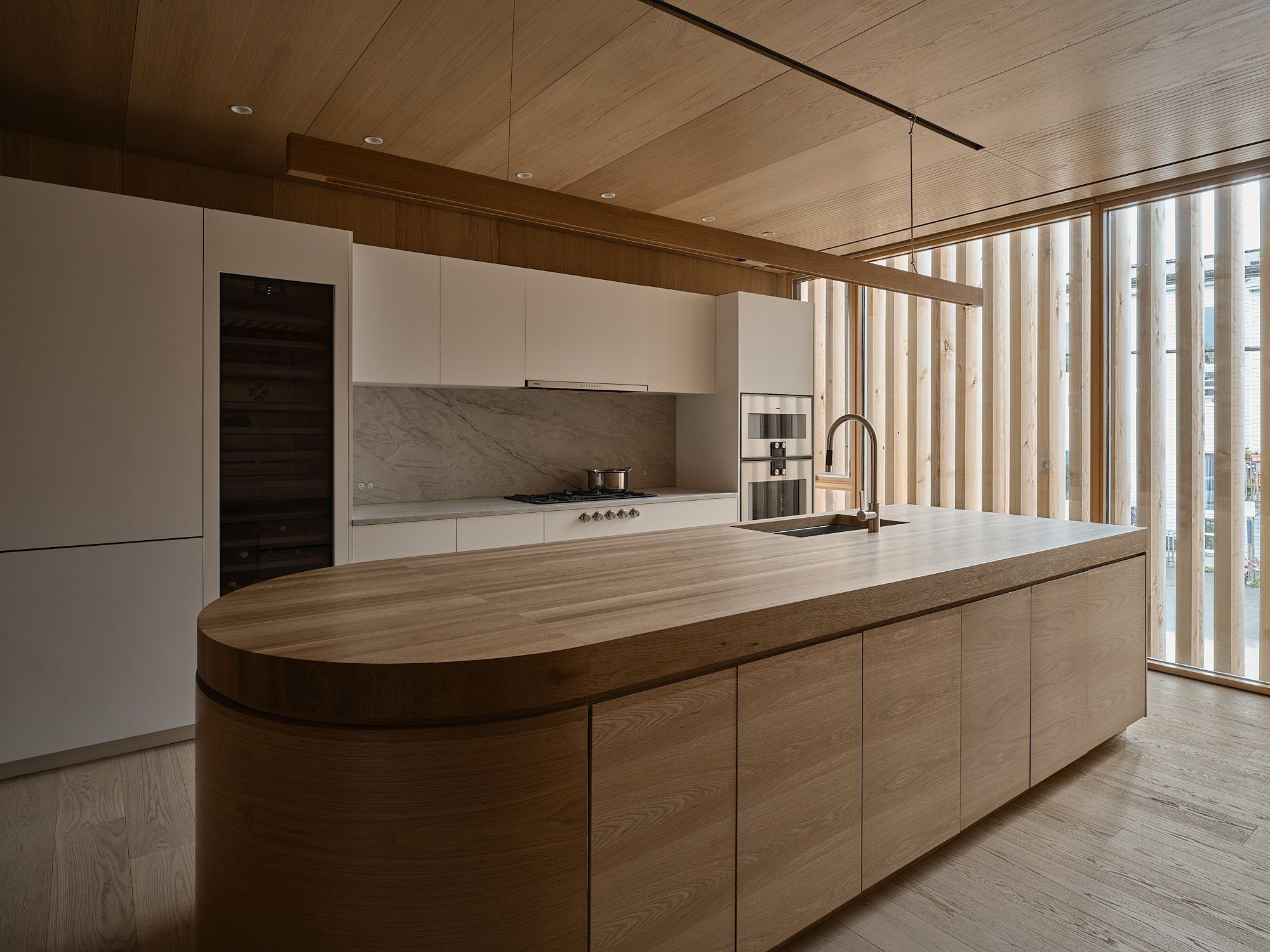

OG 18 ga., made in collaboration with OG Architects, incorporates industrial corrugation to interact with light and reflection. Its gentle curve introduces new profiles within aaline’s interior lighting solutions, drawing on the wave-like shape found in metal cladding. This fixture elegantly combines machined hardware with CNC-carved wooden cores housing aaline’s LED technology.
SERIES: OG
MODEL: 18-ga
EDITION: LI
LUMEN OUTPUT + CONSUMPTION:
4’ | Direct: 1898 lm, 24.8 W, 77 lm/W | Indirect: 1300 lm, 24.8 W, 38 lm/W
6’ | Direct: 2847 lm, 37.1 W, 77 lm/W | Indirect: 1950 lm, 37.1 W, 38 lm/W
8’ | Direct: 3796 lm, 50 W, 77 lm/W | Indirect: 2600 lm, 50 W, 38 lm/W
Based on 90 CRI, 3000K. Actual output may vary +/- 5%
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
OG 18 ga., made in collaboration with OG Architects, incorporates industrial corrugation to interact with light and reflection. Its gentle curve introduces new profiles within aaline’s interior lighting solutions, drawing on the wave-like shape found in metal cladding. This fixture elegantly combines machined hardware with CNC-carved wooden cores housing aaline’s LED technology.
SERIES: OG
MODEL: 18-ga
EDITION: DK
LUMEN OUTPUT + CONSUMPTION:
4’ | Direct: 1058 lm, 19.3 W | Indirect: 635 lm, 38.6 W
6’ | Direct: 1619 lm, 29.4 W | Indirect: 971 lm, 58.8 W
8’ | Direct: 2191 lm, 39.8 W | Indirect: 1315 lm, 79.6 W
Based on 90 CRI, 3000K. Actual output may vary +/- 5%
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate
REQUEST A QUOTE ➔
aaline’s Globe Pendant Drop offers a simple, repeatable solution for filling space. Customizable to its core, this pendant can be arranged in multiple configurations and finished in various colours to achieve the desired look.
SERIES: GL
MODEL: PN
EDITION: DR
LUMEN OUTPUT + CONSUMPTION:
337.5 lm | 5 W | 67. 5 lm/W
Estimate based on in-house calculations. Output subject to change based on most up-to-date information.
POWER INPUT: 110-277V AC | 50/60 Hz
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount sconce system is an elegant linear solution for modern environments where less is more. These units are highly customizable for different lengths, light distributions, and driver configurations to fit the needs of your space.
SERIES: LW-EB
MODEL: WM
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount Standoff system is an elegant linear solution for modern environments where less is more. These units are highly customizable for different lengths, light distributions, assembly, and power configurations. This system is designed for commercial projects with assemblies built with a robust aluminum heatsink core and solid hardwood for large-scale installations.
SERIES: LW-EB
MODEL: WM
EDITION: SO
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount sconce system is an elegant linear solution for modern environments where less is more. The Wall Mount Out-Facing is carved from solid FSC-certified Canadian hardwood and pairs perfectly with our Acoustic Panel Linear Slats [AP-LS].
SERIES: LW-EB
MODEL: WM
EDITION: OF
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
LW-EB-01 | Linear Embedded
LW-EB-IS | Linear Island
Central Canopy Installation
LW-EB-X2RD | X2 Round Edition
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Island Light is made for flexible and residential spaces. This fixture features our dual-celled anti-glare solution achieving a UGR<16, complying with WELL Building standards.
SERIES: LW-EB
MODEL: 01 | 02
UPGRADE: IS
LUMEN OUTPUT:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
Custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. aaline’s new territory of working with aluminum produces components that are manufactured with precision for a minimal fixture with endless potential.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: CY
MODEL: PN
EDITION: ST
LUMEN OUTPUT + CONSUMPTION:
Integrated
1200 lm, 9.9 W
Remote or Powered Canopy
700 lm, 5.4 W | 900 lm, 7.2 W | 1200 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. The compact pendant now features a wood housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: Cylinder
MODEL: Pendant
EDITION: Wood
LUMEN OUTPUT + CONSUMPTION:
Integrated
1200 lm, 9.9 W
Remote or Powered Canopy
700 lm, 5.4 W | 900 lm, 7.2 W | 1200 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Pendant introduces a versatile fixture that seamlessly integrates into interior spaces. aaline’s new territory of working with aluminum produces components that are manufactured with precision for a minimal fixture with endless potential.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this product invites exploration of curated indoor lighting.
SERIES: CY
MODEL: PN
EDITION: HI
LUMEN OUTPUT + CONSUMPTION:
1250 lm, 10 W | 1875 lm, 15 W | 2500 lm, 20 W | 3600 lm, 28.8 W
Based on 80 CRI, 3000K. Actual output may vary ± 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Diffuse introduces an unanticipated moment for the unique diffusion of light through elegant materials. aaline’s new territory of working with aluminum produces components that are manufactured with precision for an unprecedented and captivating fixture.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different finishes and beam angle options, this product is easily customizable to fit required specifications.
SERIES: CY
MODEL: DF
LUMEN OUTPUT + CONSUMPTION:
Integrated
1100 lm, 9.9 W
Remote or Powered Canopy
640 lm, 5.4 W | 825 lm, 7.2 W | 1100 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Cluster combines the Cylinder Pendant in various configurations to fill large interior environments. aaline’s new territory of working with aluminum produces components that are manufactured with precision and effortlessly accumulated into statement pieces.
The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different sizes, finishes, and beam angle options, this cluster offers a simple solution for captivating fixtures in open spaces.
SERIES: CY
MODEL: CL
LUMEN OUTPUT + CONSUMPTION:
3000 lm, 25 W | 4800 lm, 40 W | 7200 lm, 55 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X2
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s X2 Round Edition is designed for contemporary, minimal living. Equipped with high-performance, low-consumption LED technology in a selection of warm white colour temperatures, this system brings a comforting natural aesthetic to any environment.
SERIES: LW-EB
MODEL: X2
UPGRADE: RD
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X3
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft per foot diameter
E.g. 650 lm x 4 ft diameter = 2600 lm fixture
E.g. 1400 lm x 4 ft diameter = 5600 lm fixture
Final output confirmed in shop drawings
Custom outputs available upon request
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X4
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft per foot diameter
E.g. 650 lm x 4 ft diameter = 2600 lm fixture
E.g. 1400 lm x 4 ft diameter = 5600 lm fixture
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
Polar Array, aaline’s elegant statement piece is designed with parametric attributes to allow a simple yet impressive mass-customizable system. Inspired by generative geometric algorithms, the Polar Array relies on key parameters provided by the architect/designer to arrive at a specific system with a unique appearance and exact specifications.
By selecting the number of desired stems [N], general radial coverage [D], spacing height between stems [H] and overall dimensions of stem lengths and fixture, you can fully customize the piece.
SERIES: LW-EB
MODEL: XPA
LUMEN OUTPUT + CONSUMPTION:
3024 lm | 28.8 W | 105 lm/W
6048 lm | 57.6 W | 105 lm/W
9072 lm | 86.4 W | 105 lm/W
Final output confirmed in shop drawings
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Star Pendant takes shape through repetition. Planar baffles encircle suspended lighting to achieve unique three-dimensional forms. This system unites engineered wood backed with 100% natural acoustic felt for curated colour combinations and playful material synergy.
SERIES: Star
MODEL: Pendant
EDITION: Acoustic Felt
LUMEN OUTPUT + CONSUMPTION:
28.8 W | Max 3022 lm
57.6 W | Max 6044 lm | Available for LN and RD profiles only
Custom lumen output available for Remote fixtures only
Source LED output before reductions
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔ [Coming Soon]
REQUEST A QUOTE ➔
aaline’s Star Pendant takes shape through repetition. Planar baffles encircle suspended lighting to achieve unique three-dimensional forms. This system unites engineered wood backed with 100% natural acoustic felt or a painted finish for curated colour combinations and playful material synergy.
SERIES: Star
MODEL: Pendant
EDITION: Painted
LUMEN OUTPUT + CONSUMPTION:
28.8 W | Max 3022 lm
57.6 W | Max 6044 lm | Available for LN and RD profiles only
Custom lumen output available for Remote fixtures only
Source LED output before reductions
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser
ST-PN | Star Pendant
LW-EB-XPA | Polar Array
Wall Installation
LW-EB-WMHO | Wall Mount High Output
LIGHTING
CONFIGURE YOUR FIXTURE ➔
CYLINDER SERIES BROCHURE ➔
REQUEST A QUOTE ➔
The Cylinder Sconce embodies the principles of the Cylinder Series: sustainable manufacturing without compromising quality. Offered in a COB LED Edition with multidirectional optics or an accessible LED Bulb Edition. This product is minimal in its appearance and grand in its customization, supporting the exploration of curated indoor lighting.
SERIES: CY
MODEL: SC
COB LED EDITION [CB]
LUMEN OUTPUT + CONSUMPTION: 1200 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles
LED BULB EDITION [BL]
LUMEN OUTPUT + CONSUMPTION:
Direct | 380 lm, 6W
Indirect | 380 lm, 6W
Direct + Indirect | 760 lm, 12W
POWER INPUT: 120 VAC, 50/60 Hz
DIMMING CONTROL: TRIAC/ELV
BULB TYPE: GU10 LED bulb and socket
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline's Echo Sconce light is designed to provide a natural, soft touch in modern environments. The sconce features an array of all-natural felt strips and CNC-carved channels to help balance the sound in the room while providing a smooth, ambient wall-wash illumination.
Made with 100% natural materials and finishes, aaline's acoustic system is compatible with WELL Living Building Challenge standards and requirements. The acoustic modules are made with Class A, (ASTM E84) fire-rated felt and Class A treatment for the wooden components is also available.
SERIES: EC
MODEL: SC
EDITION: CAP
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline's Echo Sconce light is designed to provide a natural, soft touch in modern environments. The sconce features an array of all-natural felt strips and CNC-carved channels to help balance the sound in the room while providing a smooth, ambient wall-wash illumination.
Made with 100% natural materials and finishes, aaline's acoustic system is compatible with WELL Living Building Challenge standards and requirements. The acoustic modules are made with Class A, (ASTM E84) fire-rated felt and Class A treatment for the wooden components is also available.
SERIES: EC
MODEL: SC
EDITION: DOT
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline's Echo Sconce light is designed to provide a natural soft touch for modern environments. The sconce features an array of all-natural felt strips and CNC-carved channels to help balance the sound in the room while providing a smooth, ambient wall-wash illumination.
Made with 100% natural materials and finishes, aaline's acoustic system is compatible with WELL Living Building Challenge standards and requirements. The acoustic modules are made with Class A, (ASTM E84) fire-rated felt and Class A treatment for the wooden components is also available.
SERIES: EC
MODEL: SC
EDITION: ARC
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount sconce system is an elegant linear solution for modern environments where less is more. These units are highly customizable for different lengths, light distributions, and driver configurations to fit the needs of your space.
SERIES: LW-EB
MODEL: WM
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount Standoff system is an elegant linear solution for modern environments where less is more. These units are highly customizable for different lengths, light distributions, assembly, and power configurations. This system is designed for commercial projects with assemblies built with a robust aluminum heatsink core and solid hardwood for large-scale installations.
SERIES: LW-EB
MODEL: WM
EDITION: SO
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount sconce system is an elegant linear solution for modern environments where less is more. The Wall Mount Out-Facing is carved from solid FSC-certified Canadian hardwood and pairs perfectly with our Acoustic Panel Linear Slats [AP-LS].
SERIES: LW-EB
MODEL: WM
EDITION: OF
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Wall Mount Side Glow sconce system is an elegant linear solution for modern environments where less is more. These units are highly customizable for different lengths, light distributions, assembly, and power configurations. This system is designed for commercial projects with assemblies built with a robust aluminum heatsink core and solid hardwood for large-scale installations.
SERIES: LW-EB
MODEL: WM
EDITION: SG
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
Linear Gallery is aaline’s solution inspired by traditional track lighting. With a smoother and more balanced lighting output and enhanced with aaline’s proprietary carved anti-glare visors, this system is refined for a focused performance. The specially designed mount allows for installation and adjustability on any surface, making it adaptable for almost any application.
All units are made to order and come with custom installation and adjustment hardware based on specifications of the project.
SERIES: LW-EB
MODEL: GA
LUMEN OUTPUT: 536 lm/ft, custom upon request
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 9.6 W/ft
OPTICS: Polycarbonate tube diffuser
EC-MW | Echo Modular Wall Panel

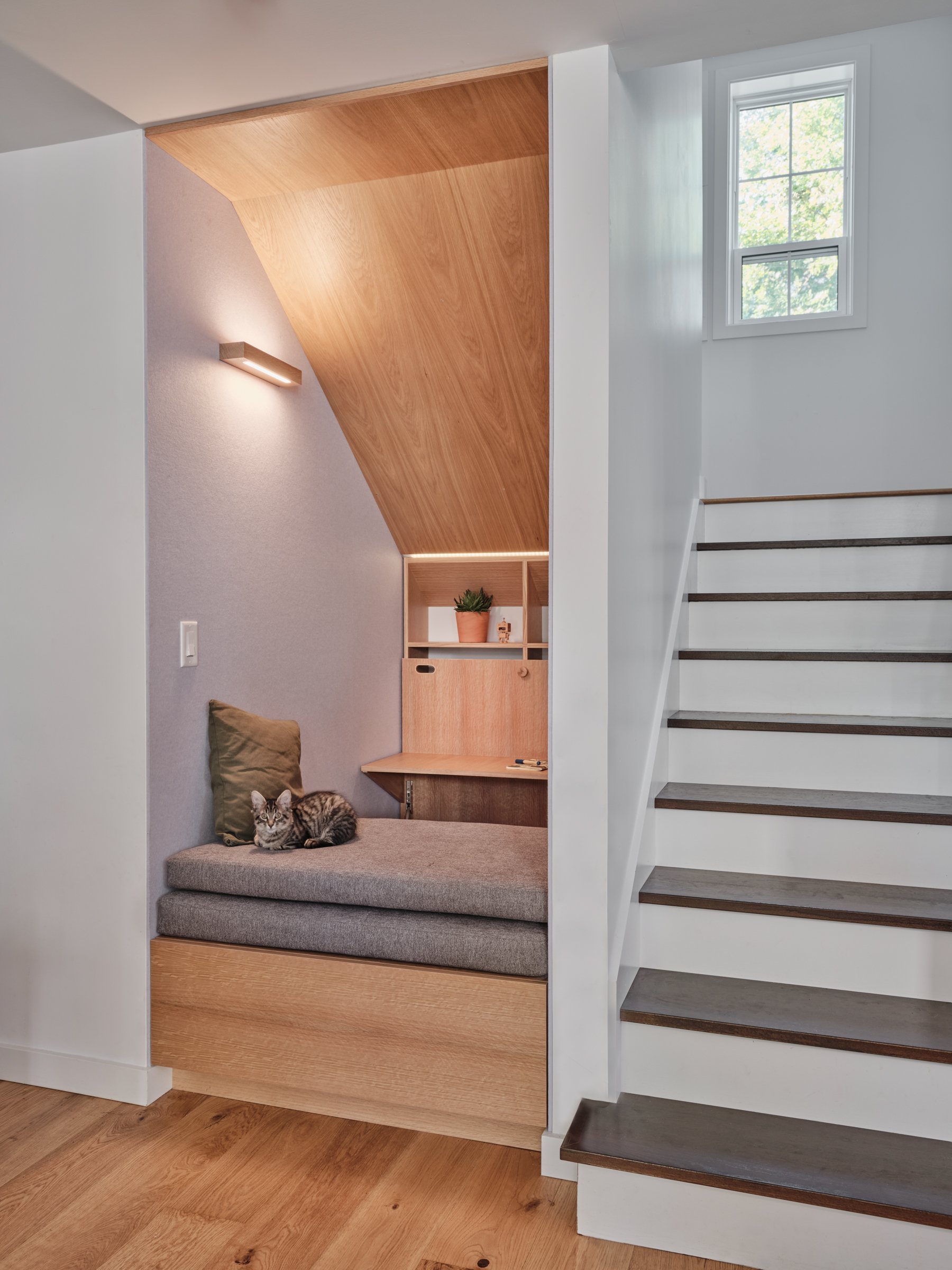

LW-EB-WM | Wall Mount
ACOUSTICS
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Slats acoustic panels are designed with the idea of warmth, comfort and tactility. They also pair perfectly with our Wall Mount Out-Facing lights [LW-EB-WM-OF] which have a consistent aesthetic but come with integrated, specification-grade LED engine. This collection is available in multiple depths for better tuning of interiors.
The system can be detailed with zero-plastic, 100% natural acoustic felt and backed with sound-absorbent fibre boards. It is one of the best performing acoustic solutions in its category.
SERIES: AP
MODEL: LS
NRC RATING: Up to 0.6
REQUEST A QUOTE ➔
The Tile Acoustic Panels are specificable in width, length, and profile for a minimal look and endless combinations. Acoustic felt is available in 40+ colours for full customization.
SERIES: AP
MODEL: TL
NRC RATING: Up to 0.6
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
The Wave Acoustic Panels are specifiable by width and length for the perfect fit in the desired space. Wave alternates concave and convex forms for a three-dimensional intrigue to acoustic performance.
SERIES: AP
MODEL: WV
NRC RATING: Up to 0.6
REQUEST A QUOTE ➔
aaline’s acoustic wall panels are made from selectively harvested Canadian Hardwood and 100% natural wool felt. With a wide range of possible combinations, and edge-to-edge magnetism with the Snap & Play editions or Pre-Assembled, aaline acoustics opens up an endless amount of personalized configurations for a minimal but effective acoustic solution.
Made with 100% natural materials and finishes, aaline’s acoustic system is compatible with Living Building Challenge standards and requirements. The acoustic modules are made with Class A , (ASTM E84) fire rated felt and Class A treatment for the wooden components also available.
SERIES: AP
MODEL: WP
NRC RATING: Up to 1.0
MOUNTING: Screws with hidden felt caps
LW-EB-WM | Wall Mount
CONFIGURE YOUR FIXTURE ➔
LINEAR SERIES BROCHURE ➔
REQUEST A QUOTE ➔
aaline’s Linear Embedded (LW-EB) is the core and engine behind aaline’s high-performance lighting systems. All systems with LW-EB modules are powered by programmable lux/lumens drivers for the most accurate, consistent, and high-efficacy performance. The chip-on-board LED modules are integrated with our robust aluminum heatsink for long life expectancy and performance up to 1400 lm/ft.
SERIES: LW-EB
MODEL: 01
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PET Diffusion Film
