Linear Anti-Glare

$0.00

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

aaline’s Linear Anti-Glare is designed to provide a smooth and balanced light distribution for a focused output. They bring luminosity and an unassuming, tactile elegance to complement contemporary architecture and interiors. aaline’s proprietary ‘carved-visor’ system relies on the structural hardwood core to sculpt the anti-glare cells with zero plastic, achieving a UGR Rating <16, in line with WELL Building Standards.

SERIES: LW-EB
MODEL: 01
UPGRADE: AG
LUMEN OUTPUT + CONSUMPTION:
Maximum Consumption: 80 W
Efficacy: 105 lm/W
Lumen Output: 650-1400 lm/ft
Final output confirmed in shop drawings
Custom outputs available upon request
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: Polycarbonate tube diffuser

CONFIGURE YOUR FIXTURE ➔

LINEAR SERIES BROCHURE ➔

REQUEST A QUOTE ➔

UNIFIED GLARE RATING
The Linear Anti-Glare aims to provide optimal balanced lighting in a human-centered approach. With a UGR of <16, it meets the WELL certification requirements of minimizing direct and overhead glare.
ANTI-GLARE VISORS

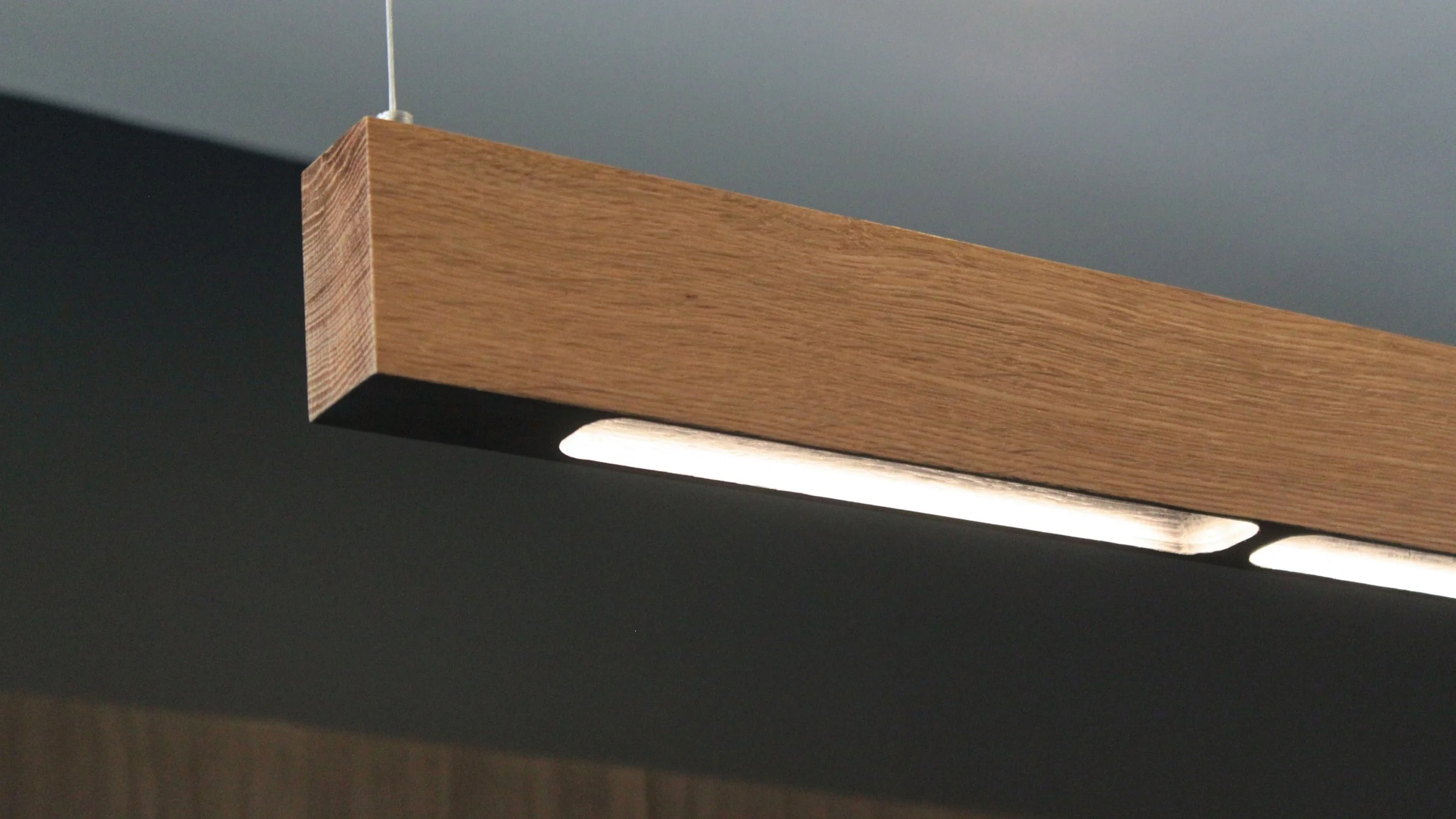

aaline developed a proprietary carved-visor design, in which the luminaire sits higher up in the fixture and allows the carved portion to reflect and diffuse the light. Carved visor come in three different finishes: natural (clear wood finish), white cell (white paint finish), and black strip (black paint finish).
SUSTAINABLE
Our products consist of 100% recyclable fixture components.
PROFILE
1-3/4"W x 3"H

LENGTH
Min. 1’ - Max. 8’, Increments of 1’

LIGHT DISTRIBUTION
Direct
Indirect, Min. 3' - Max. 8'
Direct + Indirect, Indirect is 30% of lm/ft

PROGRAMMABLE DRIVER ➔
Integrated
Remote
CIRCUIT
1
2, only available for Direct + Indirect

DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem

COLOUR TEMPERATURE ➔
2700K | Warm White | 90+ CRI
3000K | Soft Warm White | 90+ CRI
3500K | Bright White | 80+ CRI
4000K | Cool White | 90+ CRI
CANOPY
Black
White
Custom
CABLE - INTEGRATED [HIGH VOLTAGE]:
Black
White

CABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core

CABLE LENGTH:
5' [Standard]
Custom

MOUNTING OPTIONS - INTEGRATED ➔
Independent
Junction Box Support
T-Bar Support, for 15/16” t-bar width

MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
T-Bar Support, For 15/16” t-bar width

CANOPY HARDWARE - JUNCTION BOX ONLY
Minimal
Match
