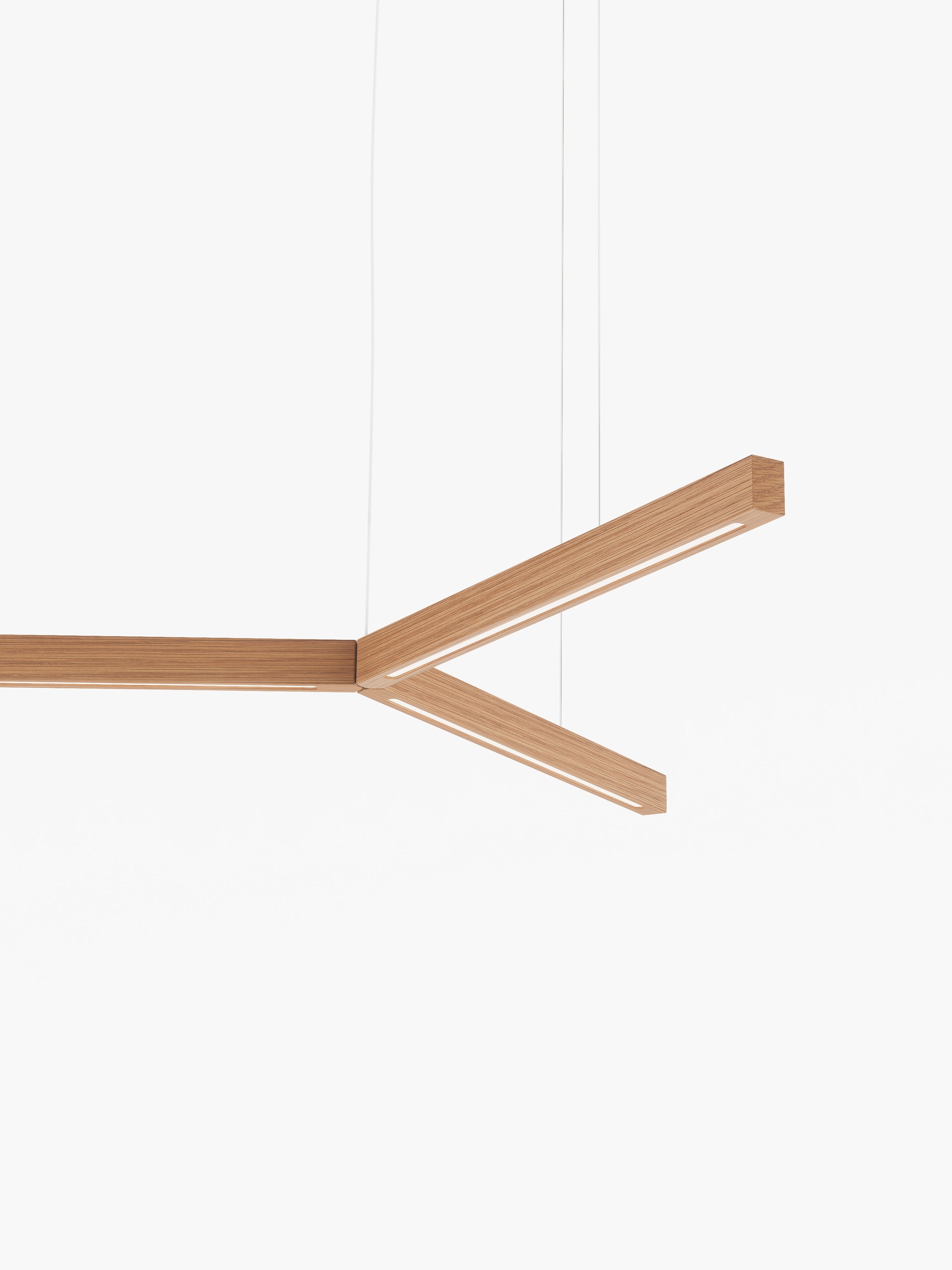

X3 Pendant
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X3
LUMEN OUTPUT: 804 lm Ø x Selected Diameter = Final Lumen Output
E.g. 804 lm x 4ft Ø = 3216 lm
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 14.4 W Ø x Selected Diameter = Final Wattage
E.g. Max. 14.4 W x 4ft Ø = Max. 57.6 W
Based on light distribution selection
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X3
LUMEN OUTPUT: 804 lm Ø x Selected Diameter = Final Lumen Output
E.g. 804 lm x 4ft Ø = 3216 lm
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 14.4 W Ø x Selected Diameter = Final Wattage
E.g. Max. 14.4 W x 4ft Ø = Max. 57.6 W
Based on light distribution selection
OPTICS: Polycarbonate tube diffuser
CONFIGURE YOUR FIXTURE ➔
REQUEST A QUOTE ➔
aaline’s Pendant Assemblies are designed as a kit of parts for designers, architects, and engineers. This system allows a variety of configurations and assemblies to perform with low-intensity settings for accent lighting or high performance as general lighting in residential, commercial, or institutional environments.
SERIES: LW-EB
MODEL: X3
LUMEN OUTPUT: 804 lm Ø x Selected Diameter = Final Lumen Output
E.g. 804 lm x 4ft Ø = 3216 lm
POWER INPUT: 110-277V AC, 50/60 Hz
CONSUMPTION: 14.4 W Ø x Selected Diameter = Final Wattage
E.g. Max. 14.4 W x 4ft Ø = Max. 57.6 W
Based on light distribution selection
OPTICS: Polycarbonate tube diffuser
-
PREMIUM PRODUCT
The LW-EB is a premium system designed to provide a smooth and balanced light distribution with focused output.
CUSTOMIZABLE
Envisioned by Fishtnk’s team, the system is designed as a kit of parts that can be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.HIGH-PERFORMANCE TECHNOLOGY
With integrated or remote driver systems as part of our standard collections, aaline can be the kit of parts spec-able in retrofit remodeling or new construction projects.SUSTAINABLE
Our products consist of 100% recyclable fixture components. -
PROFILE
1-3/4"W x 2-1/2"H
DIAMETER
Min. 2’ - Max. 8’, Increments of 2'
LIGHT DISTRIBUTION
Direct
Indirect, For 6’ or 8’ diameters
Direct + Indirect, Indirect is 1/3 of lm/ft
PROGRAMMABLE DRIVER ➔
Integrated
RemoteCIRCUIT
1
2, only available for Direct + Indirect
DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON Ecosystem
COLOUR TEMPERATURE ➔
2700K | Warm White | 90+ CRI
3000K | Soft Warm White | 90+ CRI
3500K | Bright White | 80+ CRI
4000K | Cool White | 90+ CRI -
CANOPY
Black
White
CustomCABLE - INTEGRATED [HIGH VOLTAGE]:
Black
White
CABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core
CABLE LENGTH
5' [Standard]
Custom
MOUNTING OPTIONS - INTEGRATED ➔
Independent
Junction Box Support [Large fixtures may require additional mounting support]
T-Bar Support, for 15/16” t-bar width
MOUNTING OPTIONS - REMOTE ➔
Power Over Cable
T-Bar Support, For 15/16” t-bar width -
-
